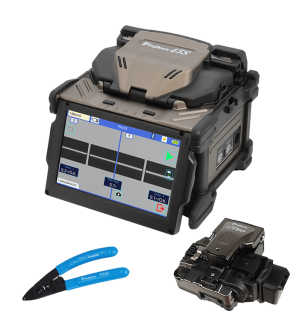

FUJIKURA 45S Fusion Splicer

The Fujikura 45S is an enhanced Active V-groove splicer

  • Active Blade Management with Bluetooth capability connection
  • Active Fusion Control function to better estimate Core loss estimation
  • Fast splicing time 6sec
  • Touch panel with easy operation

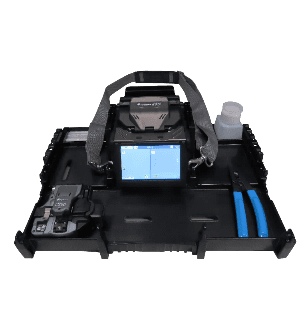

  • Multi-functional carrying case with inte grated work station

For any questions, contact us via our contact form.

  MAJOR IMPORTER OF TELECOM EQUIPMENT

Distributor in France and in 20 African countries

  OFFICIAL FUJIKURA IMPORTER

Distributor of Fujikura splicers for over 25 years

  VIAVI ELITE DISTRIBUTOR

Distributor partner of VIAVI for over 15 years

By using Bluetooth technology, the 45S wirelessly connects to the CT50 fibre cleaver and enables a range of pioneering features that will improve the overall installation time, cost and efficiency for operators.
The 45S also has the unique capability to estimate splice loss with greater accuracy, using a New Core Loss Estimation Function.

The 45S is the brand new splicing solution designed to be used on field for FTTx network deployment. The 41S+ can also be used to complete datacom, Data Centers and LAN network.

The 45S continue all the quality that makes the fame of Fujikura: performance, repeatability of splices, and field reliability. The 45S is light and operate with all the optical fiber used on networks (including G651, G652, G655, G657 fibers)

45S

Data sheet

Application
FTTx, LAN, Data Center, Access Network
Alignment
Enhanced Active V-groove (X,Y,Z alignment)
Splicing time
6 s
Heating time
25 s
Number of splice per full battery charge
200
Electrodes lifetime
5000 arcs
Weight
1300 g
Dimensions (L x H x P)
131x 201 x79 mm
Typical insertion loss splicing G651
0,01 dB
Typical insertion loss splicing G652
0,03 dB
0,05 dB
Typical insertion loss splicing G655
0,05 dB
Typical insertion loss splicing G657
0,03 dB
